J330-5 Aqualine

J330-5 Aqualine



The Aqualine is suitable for installation in spray park applications and must be flush mounted with the surface or in beach entry applications at the edge where it is not submerged. A piped in water source is required.

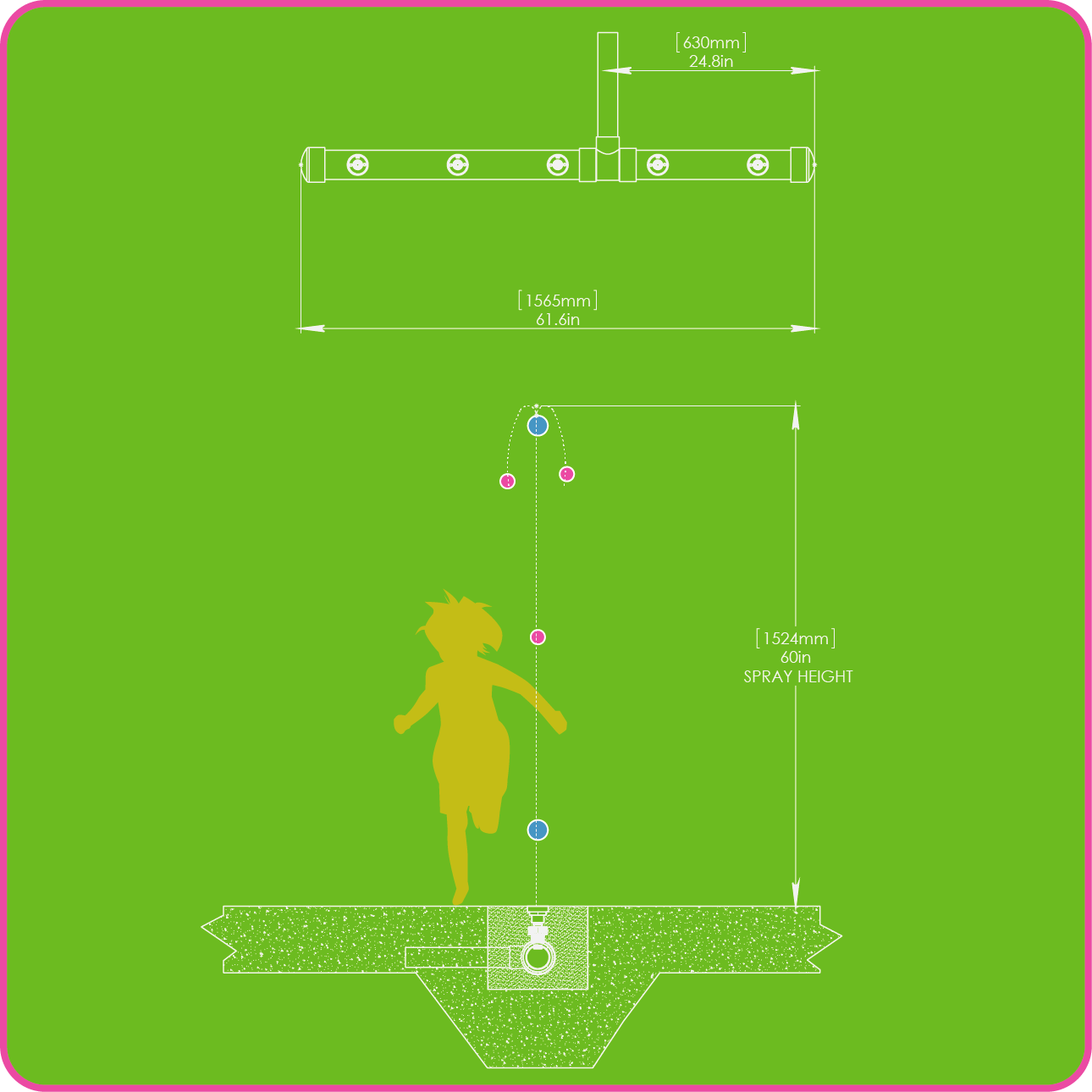

The water feature is formed from five upward laminar jets installed in a straight line to a max height of 60” (1524mm), which can be adjusted in a desired direction to a max spray of 48” (1219mm). Interactivity is generated by stepping on one nozzle, increasing the height on the others allowing interaction for children and parents alike.

Operation is at a maximum pressure of 35gpm @ 10psi or 2.2L/s @ 7m.

Product Specs

ID: J330-5

Age Group: 2+

Water Depth: 0-2in (0-50mm)

Spray: 61.6in (1565mm) x 12in (305mm) Spray Diameter

Flow: 35GPM (2.2 L/S)

Pressure: 10PSI (7m)

Product Weight: 21lbs (9.5kg)
