J550 Angle Jet

J550 Angle Jet

Angle Jet


The Angle Jet is suitable for installation in spray park applications and must be flush mounted with the surface or in beach entry applications at the edge where it is not submerged. A piped in water source is required.

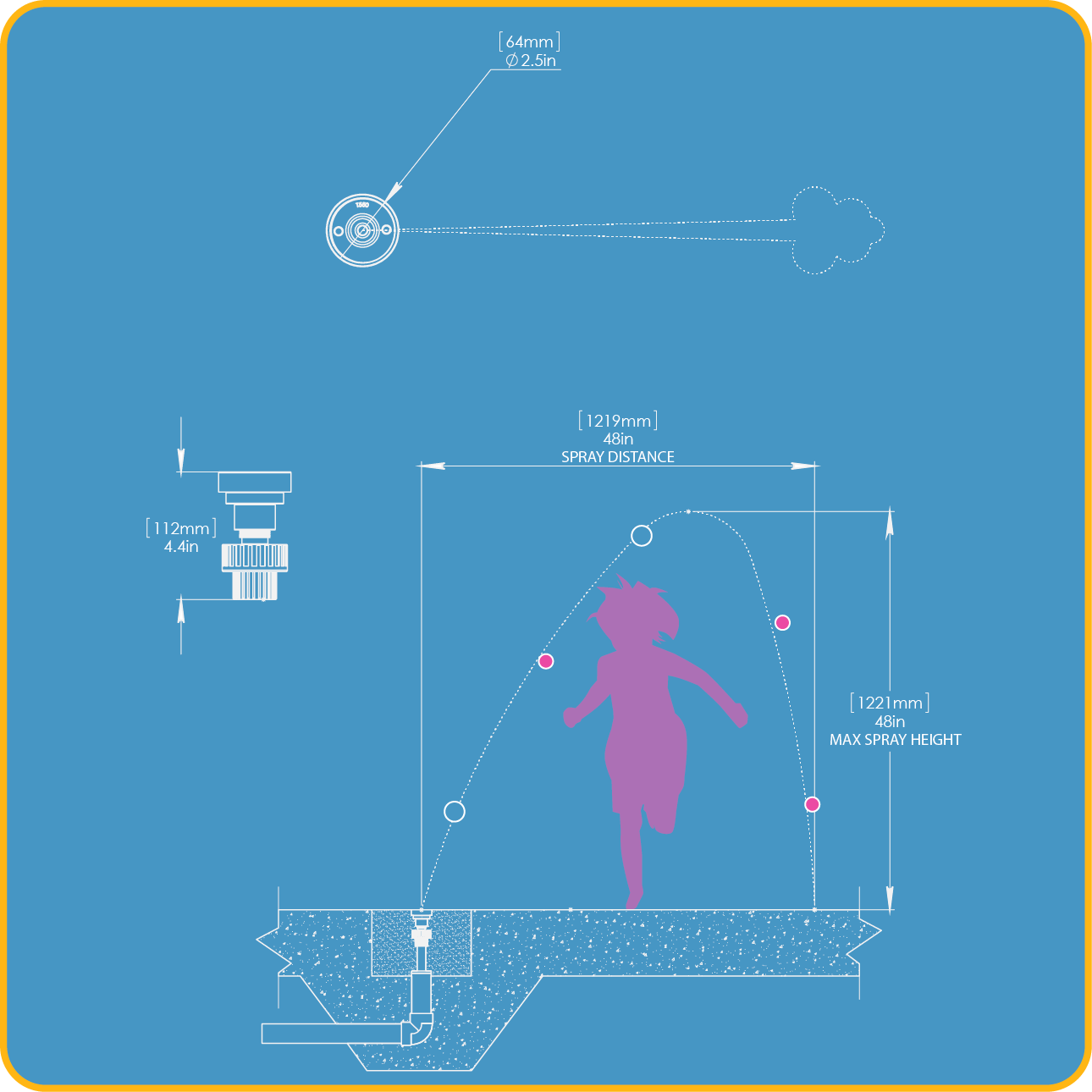

The water feature is formed from a laminar jet installed as a single unit or in a group which can be adjusted in a desired direction to a max height of 48” (1221mm) with a max spray of 48” (1219mm). The nozzle allows for various designs and creates a wonderful low-level water effect generating interaction for children and parents alike.

Operation is at a maximum pressure of 7gpm @ 10psi or 0.44L/s @ 7m.

Product Specs

ID: J550

Age Group: 2+

Water Depth: 0-2in (0-50mm)

Spray: 48in (1219mm) Spray Distance

Flow: 7GPM (0.44L/S)

Pressure: 10PSI (7m)

Product Weight: 1lbs (0.45kg)
