AB102 Aquabat



The Aquabat #2 structure is a spray feature which is suitable for spray park applications and shallow pools with no standing water. It requires a piped-in water source.

The acrobatic themed structural design has a continuous water spray which participants can create two different spray features by pushing a handle inwards which creates a cone spray from the nozzles along the back or a soft laminar spray from each side of the column. This unit is an excellent high level feature for interactivity with parents and children alike.

Operation is at a maximum pressure of 30gpm @ 25psi or 1.89L/s @ 17.5m.

Product Specs

ID: AB102

Age Group: 4+

Water Depth: 0-12″ (0-300mm)

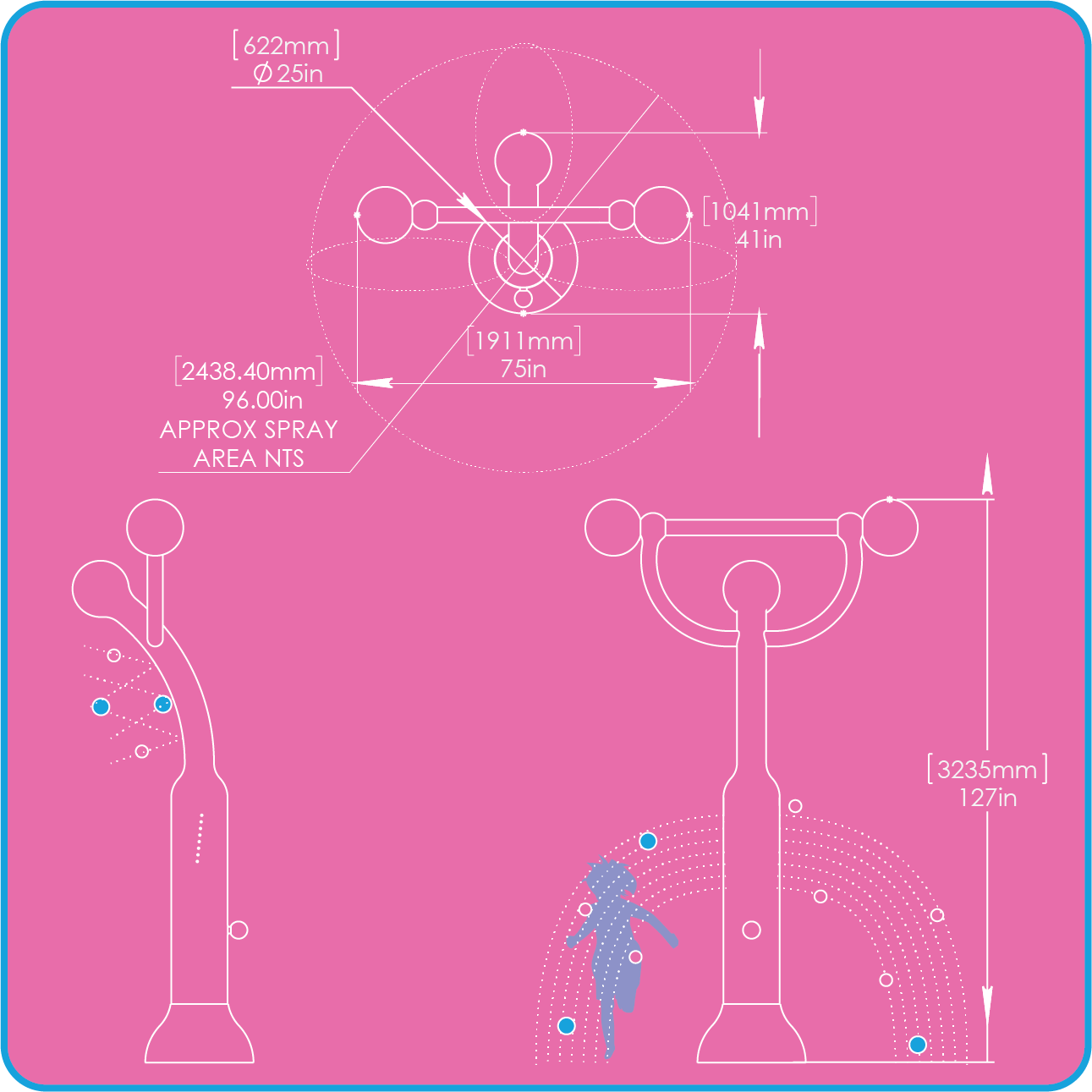

Spray: 96in (2438mm) Spray Area

Flow: 30GPM (1.89 L/S)

Pressure: 25PSI (17.5m)

Product Weight: 180lbs (81.8kgs)
