M513 Aquasub



The Aquasub structure is a spray feature which is suitable for shallow pools and spray park applications with no standing water. A piped in water source is required.

The structure has a continuous water spray which participants can enjoy two different spray features; soft laminar sprays emits from sides, or a burst of water is shot out from the stack in middle by turning the handle forward. This unit is an excellent low level feature for interactivity with the smaller children.

Operation is at a maximum pressure of 30gpm @ 25psi or 1.89L/s @ 17.5m

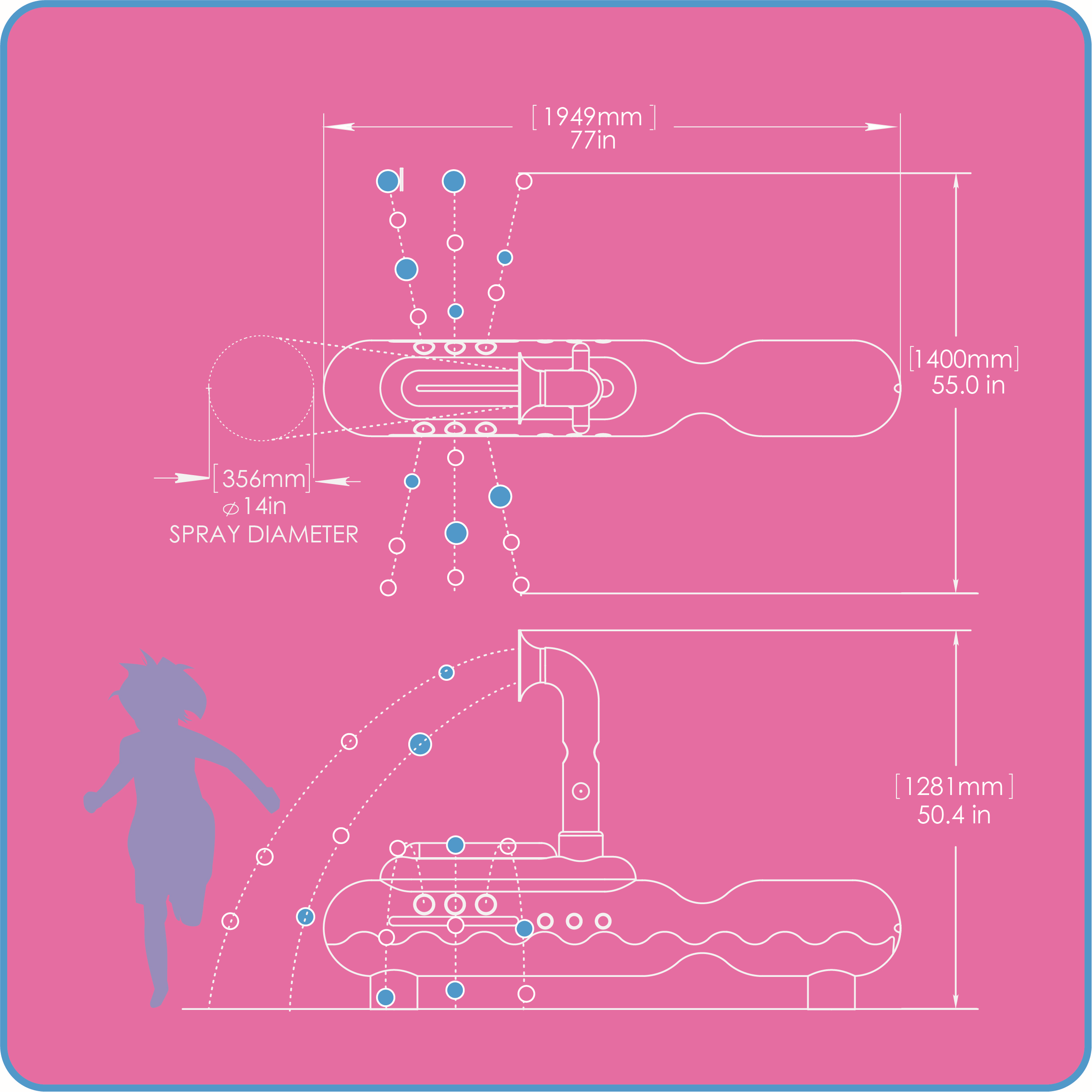

Product Specs

ID: M513

Age Group: 2+

Water Depth: 0-12in (0-300mm)

Spray: 14in (356mm)

Flow: 30gpm (1.89mm) ea.

Pressure: 25PSI (17.5m)
