T735 Aquatrio

Aquatrio

Description

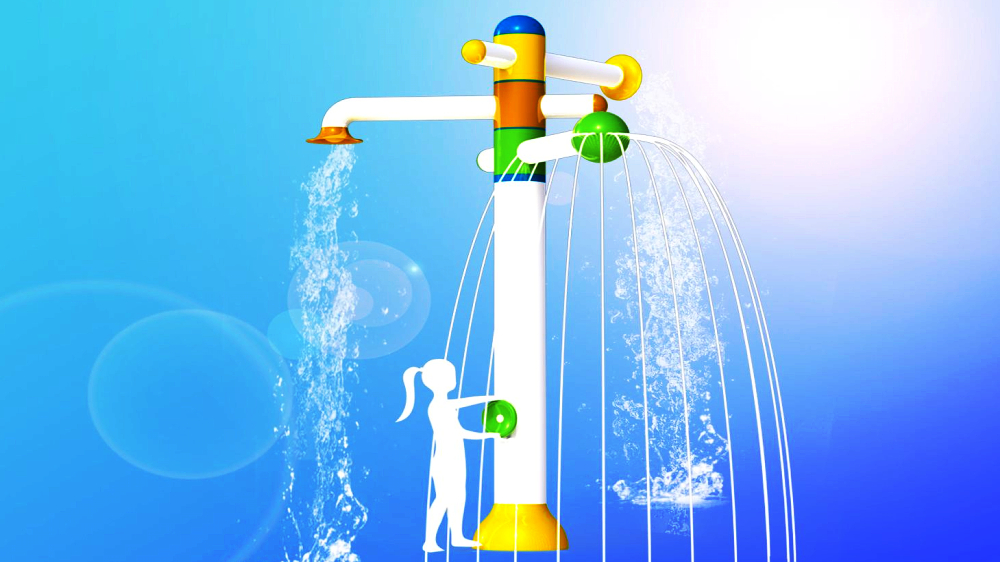

The Aquatrio is a spray feature which is suitable for shallow pools and spray park applications with no standing water. The structure is also well suited for use with interactive lazy river rides. There are no moving parts and simple interaction for the players is with the water flow alone. A piped in water source is required.

A water diverter (Aquaverter) shall be installed in the column for manual actuation. Turning the wheel will divert water to the three different water features above, an Aquafall– a large single stream of water; an Aquashower– multiple nozzle spray head delivers a large soft laminar spray; and an Aquabulb – continues soft laminar flow of water.

Operation is at a maximum pressure of 30gpm @ 25psi or 1.89L/s @ 17.5m.

Product Specs

ID: T735

Age Group: 4+

Water Depth: 0-12in (0-300mm)

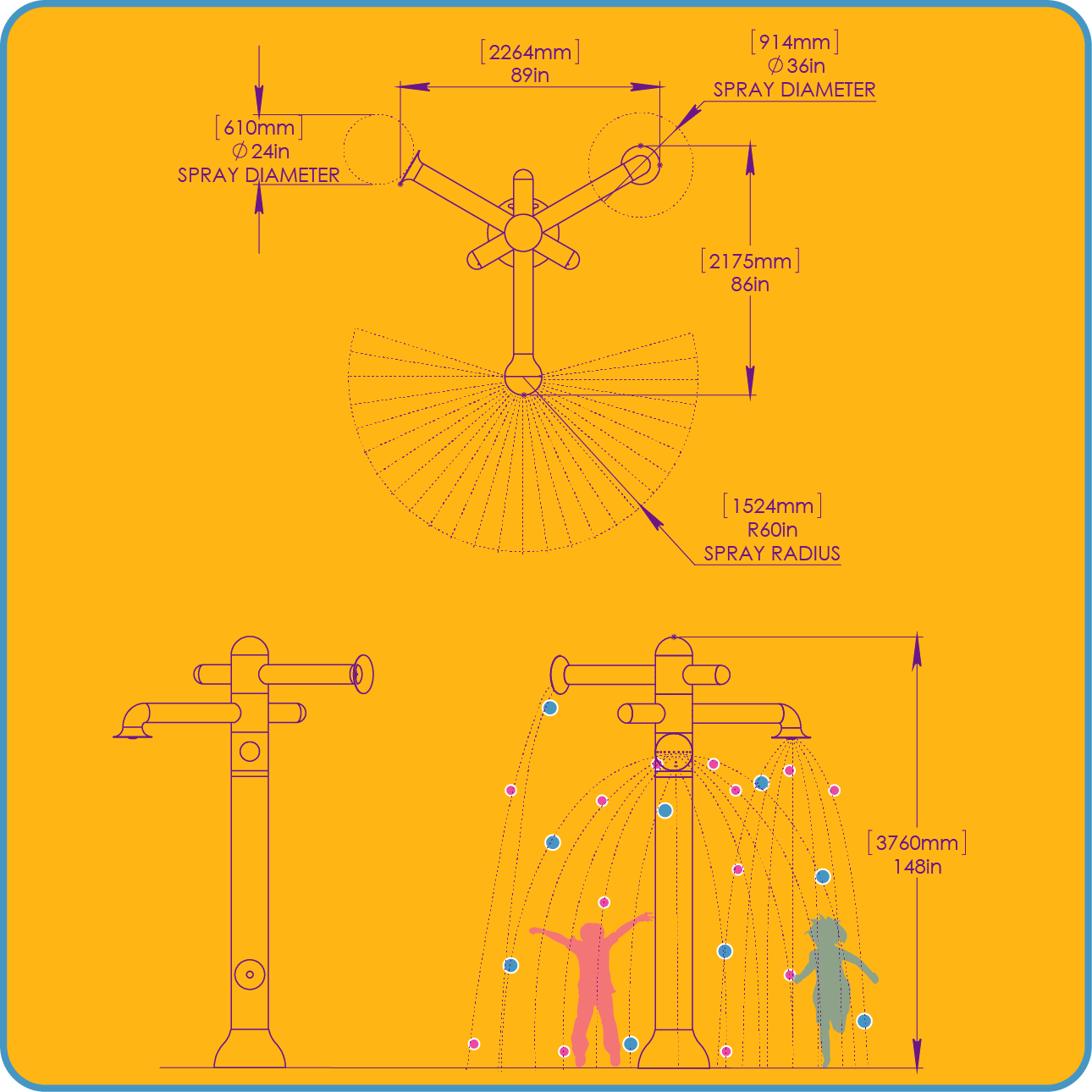

Spray: 164in (4160mm) x 131in (3330mm)

Flow: 30GPM (1.89L/S)

Pressure: 25PSI (17.5m)
